IP Access Control

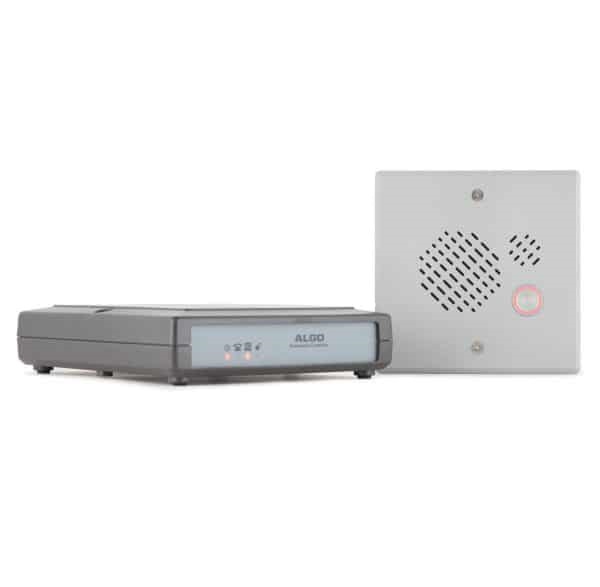

3226V Vandal-Proof Trunk Port (FXO) Doorphone

Vandal Proof Analog Trunk Port Doorphone for Visitor Entry with Integrated Door / Gate Control Relay – 24V

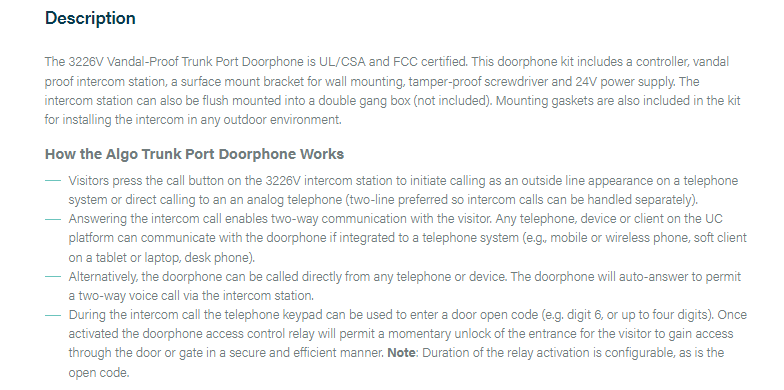

The vandal-proof 3226V Trunk Port Doorphone is an analogue intercom for hands-free communication at a secure entrance door or gate, particularly in high-risk environments such as a prison or correctional facility, police station, parking lot, etc. This analogue intercom / doorphone is outdoor rated.

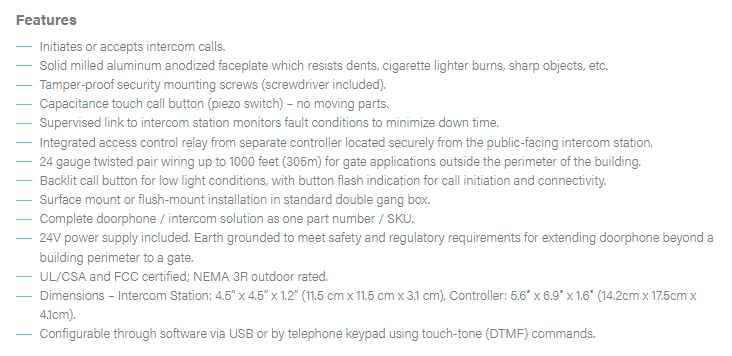

  • FXO analogue trunk port interfaces to a telephone system or directly to an analogue telephone.
  • Rugged low-profile appearance to dissuade vandalism.
  • Solid milled aluminium anodized faceplate which resists dents, cigarette lighter burns, etc.
  • Offset grill pattern to minimize sharp object penetration to intercom speaker and microphone.
  • NEMA 3R outdoor rated.

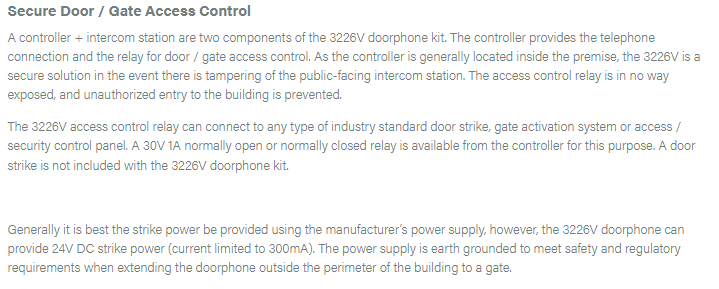

  • Seamless relay activation via telephone keypad during the intercom call for secure door or gate entry.
