8138 IP Color Visual Alerter

IP Color Visual Alerter for Telephone, Safety, Security & Emergency Alerting

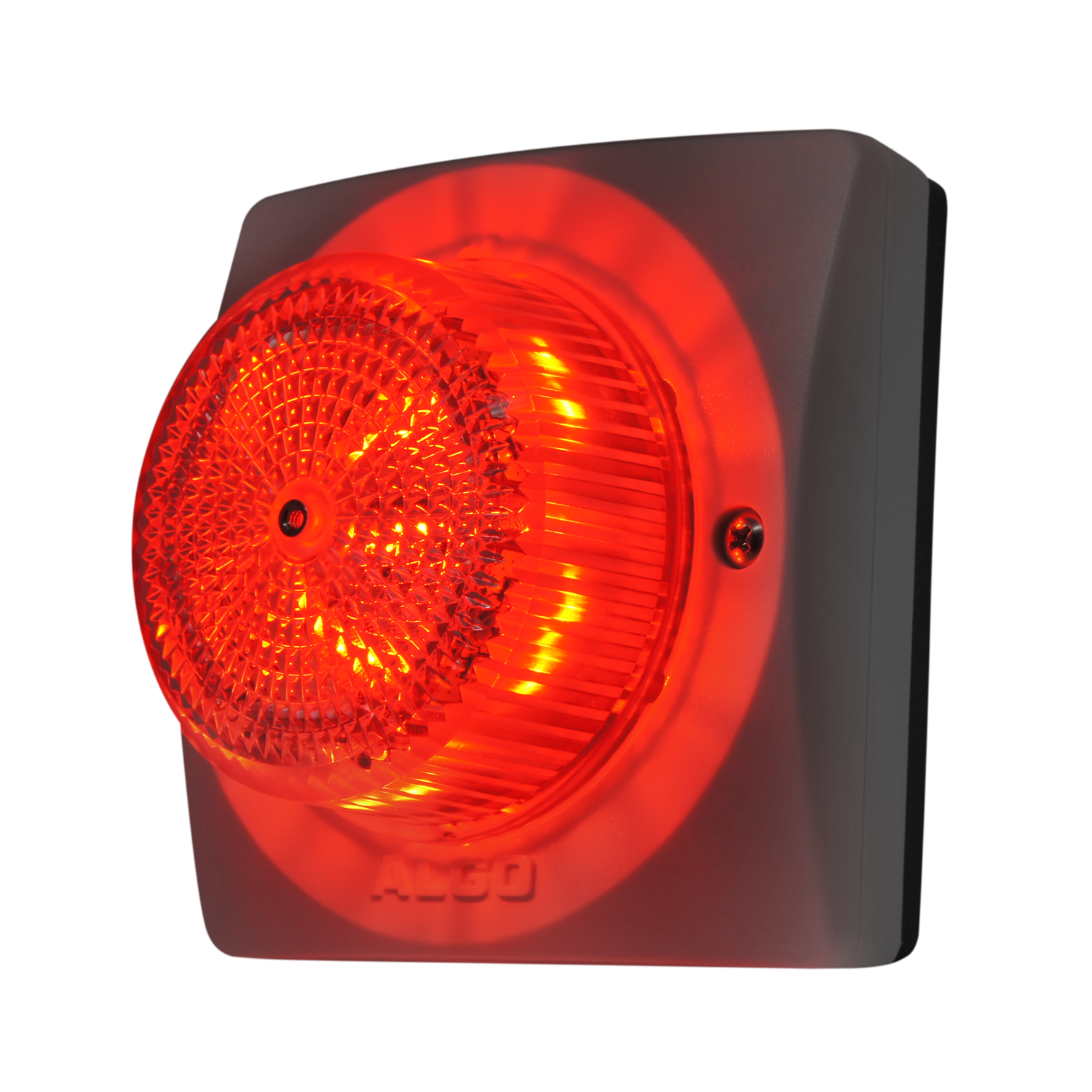

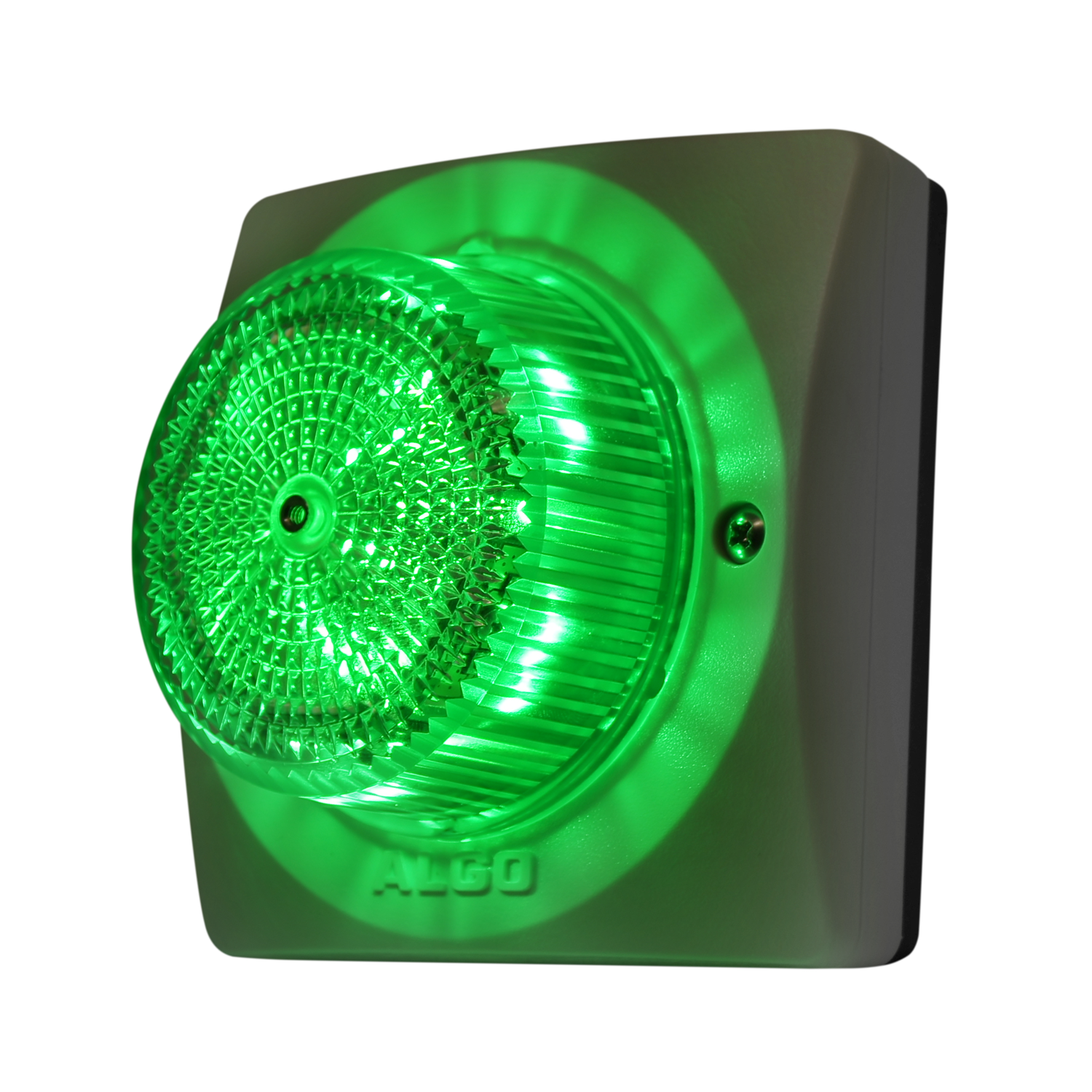

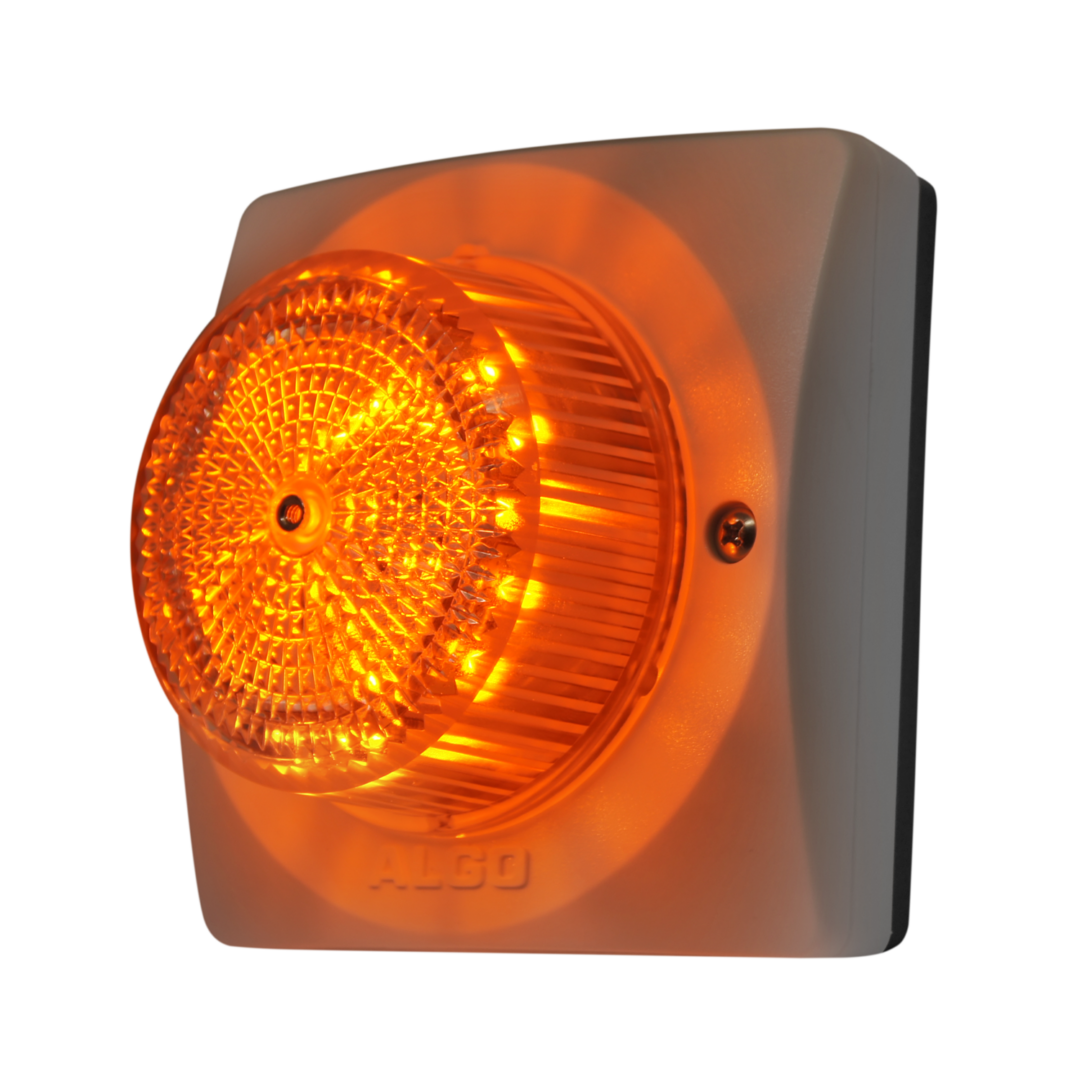

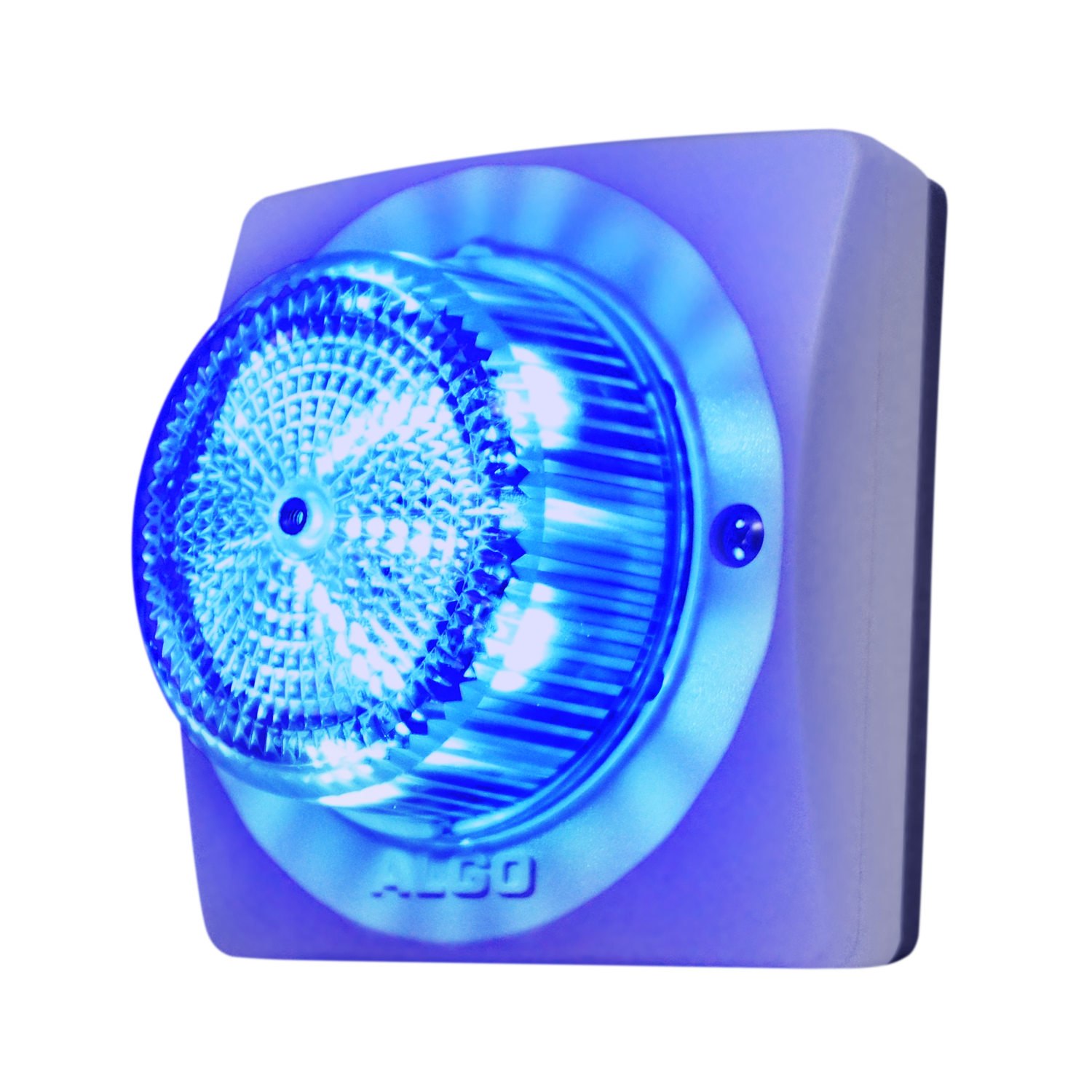

The PoE 8138 IP Color Visual Alerter is a four-color LED visual alerting IP endpoint in amber, blue, green and red. This outdoor-rated PoE IP strobe light is designed for telephone ringing where noise, noise sensitivity, or hearing impairment are at issue. Together with Algo IP speakers, the 8138 is also commonly deployed as part of public address (PA) and mass notification systems to visually alert for safety, security, and emergency events.

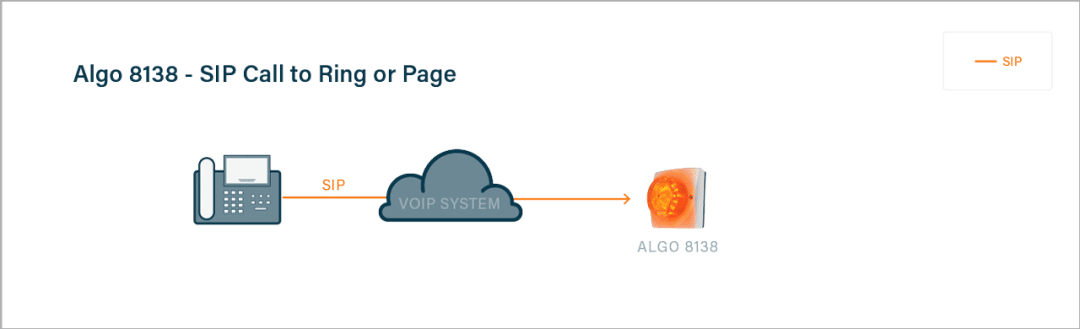

The 8138 alerter is a fully compliant 3rd party SIP endpoint. As a result, this IP strobe light is compatible with most hosted / cloud and premise-based VoIP telephone systems.

The 8138 IP Color Visual Alerter is UL/CSA, FCC and CE certified.

User Manual

Data Sheet

Product Overview

Description

IP Visual Alerting for Enhanced Situational Awareness

The 8138 IP Visual Alerters is a four-color LED including amber, blue, green and red. The alerter’s color options are designed to enhance notification and alerting of telephone, safety, security and emergency events. Typically the 8138 is deployed with Algo IP speakers using multicast, to design a notification system that aligns a visual alert color with the speaker’s broadcast for an alert tone / announcement. For example, Amber – Shelter, Blue – Medical, Green – All Clear, Red – Lockdown.

Multiple SIP registrations are available in this IP alerter, including Page (50), Emergency Alert (10) and Ring (10) extensions. On Page, the alerter will auto-answer and flash until the call is ended by the caller (this allows long duration events). For Ring, the alerter will not answer but flash for the duration of ring.  Emergency Alert extensions activate the strobe to flash until the event is cancelled by calling a separate extension.

Scale Algo IP Visual Alerters Over Any Size Building or Campus

The 8138 IP Color Alerter Color supports multicast send or receive. As a result, many Algo alerters can be deployed to cover any size building, campus or enterprise.  There is no limit to the number of devices receiving a multicast, and a minimum of network traffic activity is utilized. Multiple alerters activated by multicast will flash in a synchronized pattern.

A single registered 8138 can be configured to multicast to any number and mix of Algo IP speakers, paging adapters, strobe lights and multicast supported IP telephones.

Multicast provides cost effective scalability using a minimum of SIP registered endpoints, as only the endpoint designated to send the multicast needs to be registered. Devices configured to receive the multicast do not need registration.

Support is available for RTP multicast, in addition to Polycom Group Page, Singlewire InformaCast (part no. 8138-IC). Revolution support will be available in Q3 2020.

Zone Paging

Multicast zone paging for up to 50 zones can be configured from a single 8138 strobe light. Zones can be selected one of two ways. One option is to map multicast page zones to individual SIP extensions on the endpoint. Fifty (50) page extensions are available for this purpose. Alternatively, in order to minimize SIP registrations, multicast page zones can be configured in the SIP strobe light as a DTMF key press selection using the dial pad of telephone making the page call.

Alert Notification in Transportation, Education, Manufacturing & Other PA Applications

Together with the Algo 8301 SIP Paging Adapter & Scheduler, a PA system requiring multiple zones with scheduled bells / announcements can be easily configured and synchronized with IP clocks using the 8138 and other Algo IP speakers.

If desired, the 8301 IP paging adapter can also provide audio to a legacy analog paging system via its line-level output, and simultaneously multicast this audio to additional Algo IP endpoints.

IP Visual Ring Alerting

The Ring extension on the 8138 is used for telephone visual ringing / ring alerting. The 8138 will flash when this extension is called. Typically the strobe light will be configured in a ring group to include a telephone(s). The strobe light will flash for the duration of the ring event until the call is answered. Fifteen(15) flash patterns, each with three intensity levels, are available to choose from.

Up to 10 Ring extensions are available to register on a single strobe light, thereby allowing one device to act as a visual alerter for several telephones by configuring different ring groups for each registered Ring extension. Each registered extension can of course be configured to flash a specific color, flash pattern and intensity to effectively distinguish each telephone ring event.

Where audible and visual telephone ring alerting is required, the 8138 can be combined with an Algo strobe light using multicast or a relay.

Emergency Notification Alerting

For notification alerting of safety, security and emergency events there are two activation options available: Dial an Emergency Alert extension or connect a button to the strobe’s relay input.

Up to 10 Emergency Alert extensions are available to register on the alerter, allowing for different types of alerts to be activated when the extension is called (e.g., lockdown, evacuation, shelter, all clear, etc.). The multi-color configuration options of the 8138, in addition to multiple flash patterns and intensities, allow this IP alerter to align with specific alerting events. This capability improves situational awareness and response time.

An Emergency Alert can be configured to activate the alerter for a timed duration. Alternatively, the alert be activated until cancelled. This feature uses a Call To Cancel extension to stop activating the strobe light when desired.

Upon calling an Emergency Alert extension the user does not have to remain on the phone. As soon as the call is made the 8138 alerter will flash as configured. This ensures emergency alerting is simple and efficient from any telephone or device in the UC environment. If the Call to Cancel extension is configured, the same cancelling extension will apply to any of the Emergency Alert extensions registered.

As an alternative option for emergency alerting, any button providing a contact closure, including the Algo 1202 and 1203 buttons, can be wired to the 8138 relay input using a 24 gauge single twisted pair. Two configuration options are available via strobe’s relay input upon button activation:

  • Flash and/or multicast an alert.
  • Call a target extension and play a tone / announcement.

Power for the Algo 1202 and 1203 buttons is provided by the available PoE from the 8138 IP Coilor Visual Alerter.

Long-Life LEDs & Customizable Flash Patterns

The high intensity LEDs of the 8138 SIP Strobe Light provide extended life in comparison to Xenon type strobes, with more luminescence and less energy.

The IP alerter offers 360 x 180 degree visibility when mounted to a wall or ceiling. Fifteen (15) flash pattern options (each with three intensity levels and four color options) are available to suit any application environment.

To sum up, the 8138 IP alerter is powered via PoE (IEEE 802.3af). A wall mount plate is included for easy installation. The product is CSA/UL, FCC and CE certified.

Benefits of the PoE Algo IP Color Visual Alerter

  • Network managed and supervised SIP and multicast endpoint.
  • Visibility from any angle whether mounted vertically or horizontally.
  • Fully zone configurable via a web interface. Multicast zones are not dependent on wiring to the strobe light.
  • Multi-color LED visual alert to meet enhanced emergency notification requirements.
  • Match aggressiveness of the flash pattern (15), intensity (3) and colors (4)  to the nature of the alert. For example, low, medium and high brightness options with amber, blue, green and red LED color choices.
  • Multicast to scale from one to many synchronized alerters.
  • Notification without audible noise for noise-sensitive, high noise environments or for hearing impaired users.
  • PoE (IEEE 802.3af) eliminates need for local power supply, and simplifies wiring infrastructure and management.
  • Compatible with all varieties of Algo IP speakers, paging adapters and strobe lights for more comprehensive alerting solution requirements.
