IP Cordless Phones

Data Sheet

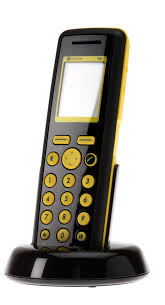

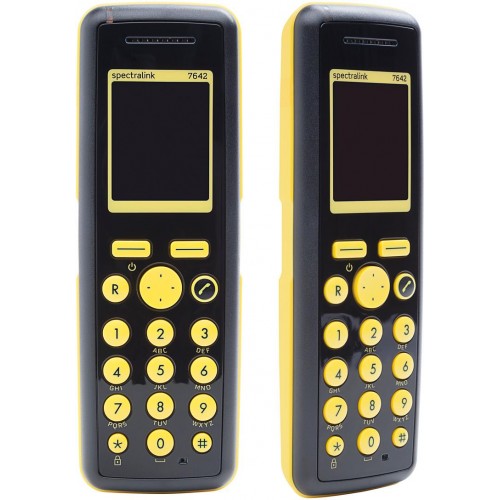

Spectralink 7642 Cordless Handset

Designed specifically for harsh industrial and manufacturing environments, the 7642 handset features an IP 64 industrial rating and an integrated alarm button enabling workers to call for assistance in the event of an emergency. In addition to the features of the 7622, the 7642 also supports Bluetooth headset, and has advanced personal protection features such as tear off cord, man down and motion detection

Features include:

  • Bluetooth headset connection
  • Tear-off String(rip cord)**
  • Man down detector**
  • No Movement detector**
  • Running detector**
  • TFT colour display (65.000 colours, 8 lines of text/icons)
  • Software Update Over The Air (SUOTA)
  • Li-ion battery
  • Battery: 2 yrs / 500 charge cycles
  • User replaceable battery
  • Dual charger available
  • 4 Way navigation key
  • 2 Softkeys
  • CLIP (40 caller-ID presentations)*
  • Date and time in display*
  • Internal/external ring pattern*
  • Volume control
  • Telephone book with 350 name entries (4 numbers per name)
  • Auto login – roaming between 15 different installations
  • Silent mode (mutes all alerts/calls)
  • Alerting on silent mode (choice from display flash, vibrator or short ring)
  • Call list of incoming/missed/received (last 40 entries)*
  • Redial function from call list
  • Speed dial
  • Auto answer (B-answer) with different settings (after 1st ring/on headset/ loud speaker on), only possible when not in charge.
  • 10 different ring signals and adjustable ring volume
  • Key lock
  • Auto key lock
  • Any key answer
  • Vibrating alert
  • Headset connection
  • 14 menu languages (UK, FR, DE, ES, IT, NL, CZ, PL, DK, NO, SV, FI, PT, RU)
  • Ring tone in headset
  • Adjustable volume in headset
  • Answer/end calls via headset button
  • Microphone mute
  • Speaker on auto-answer
  • R-key for transfer and special services
  • Adjustable alerting volume (low battery/ low coverage/incoming message)
  • Adjustable backlight delay (for max. battery conservation)
  • Text messaging, stores 20 messages of max. 72 characters per message*
  • 10 user defined messaging templates
  • Speech/stand by time: up to 15/90 hours (with Bluetooth disabled)
  • Weight incl. battery: 123g
  • Size (LxWxH): 148×50.4×21.6mm
  • 2 types of chargers (w/wo USB 2.0 connection)
  • Loud speaking/Handsfree
  • IP 64 classification: Dust tight/Splashing water
  • HD Voice Ready
  • Virtual SIM support
  • Alarm key – ready for alarm application**
  • Light diode**
  • Alarm Icons and Messaging**

*System dependent feature
** Application dependent – additional messaging software is required
