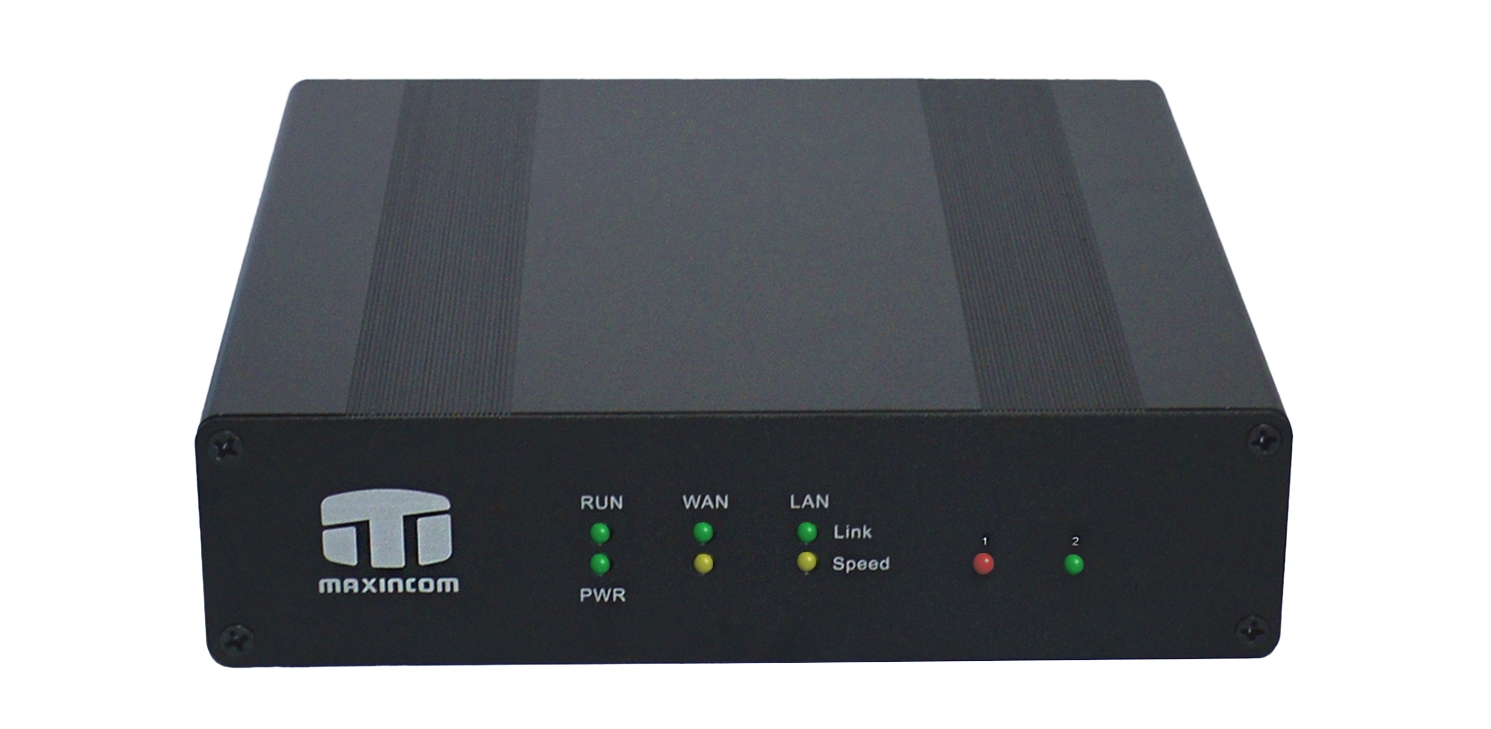

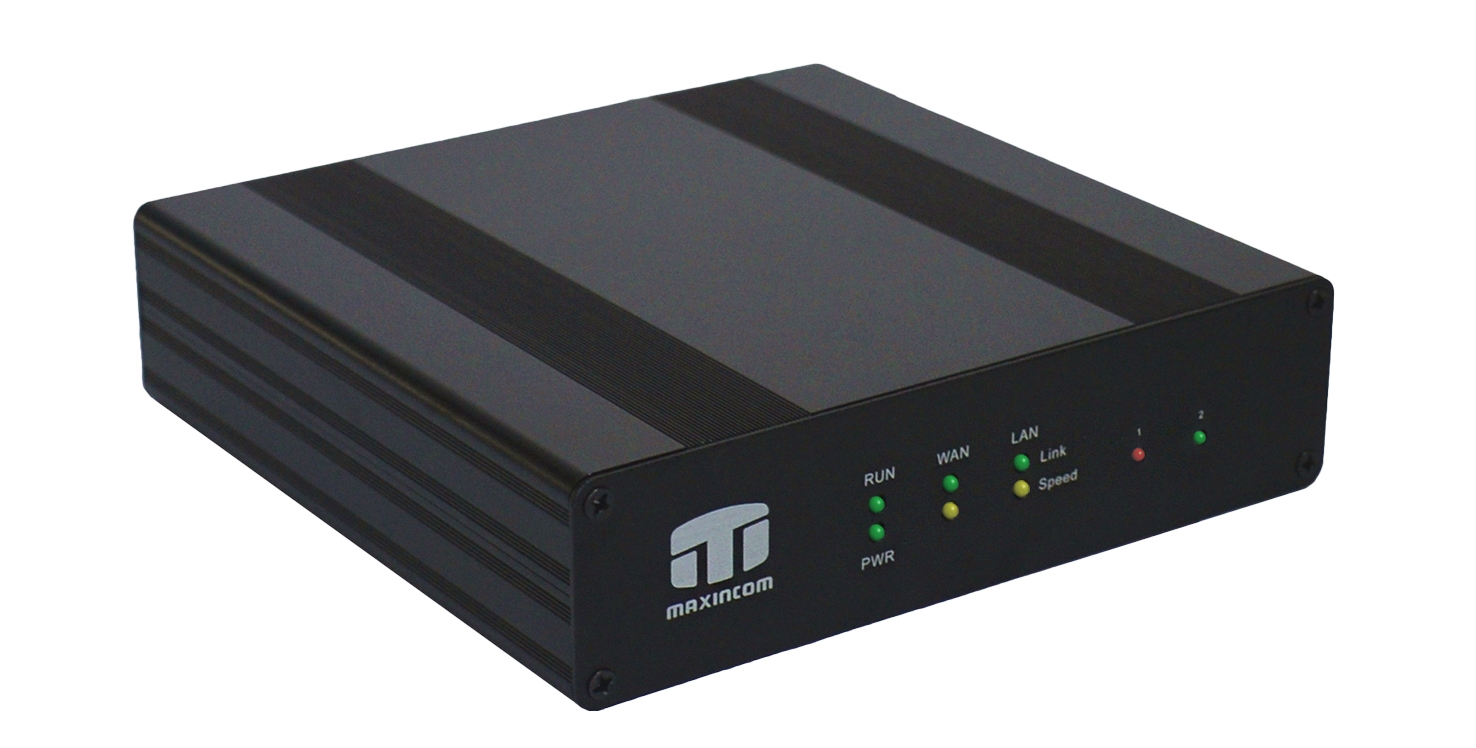

MAXINCOM MUC1002

Overview

The MAXINCOM MUC1002 is an embedded IP PBX specially designed to bring enterprise-grade Unified Communications and Security protection features to small business in a easy-manage fashion.

It offers up 20 users which offers the flexibility of connection of VoIP Phones, IP Paging, Wi-Fi Phones, DECT Phones and Access Control Phones, VoIP Trunks and supports a maximum of 10 concurrent calls.

It offers a solution for converged voice,video,data,fax,and mobility applications out of the box without any extra license fees or recurring costs.

Features
  • Support 20 users, 10 concurrent calls
  • Deliver enterprise-grade communication features and functionality to SMBs
  • Interoperability with a wide range IP Phone
  • Strongest-possible security protection using SRTP,TLS,and HTTPS
  • Energy Saving, Embedded system with low power consumption for your green office
  • Flexible dial plan and Manipulation Rules
  • Full IVR Function
  • Voice Mail to Email
  • User Browser Voice Mail Login to see, Play, Delete, download messages etc.
  • Extension user Login to administrator users settings
  • Voice Recording, Incoming, Outgoing, Internal Calls
  • Central Voice recording storage with User and Search access
  • Twinning (Desk Phone Cell Phone)
  • Auto Provision Phones (Fanvil Phones Full Auto Provision)
  • Mini Hotel Features
  • Mini Call Center Features
  • Call Ques
  • Ring Groups
  • Call Routing
  • Conference Rooms
  • Customer Voice Recording Prompts
  • Easy to manage via web-based configuration interface

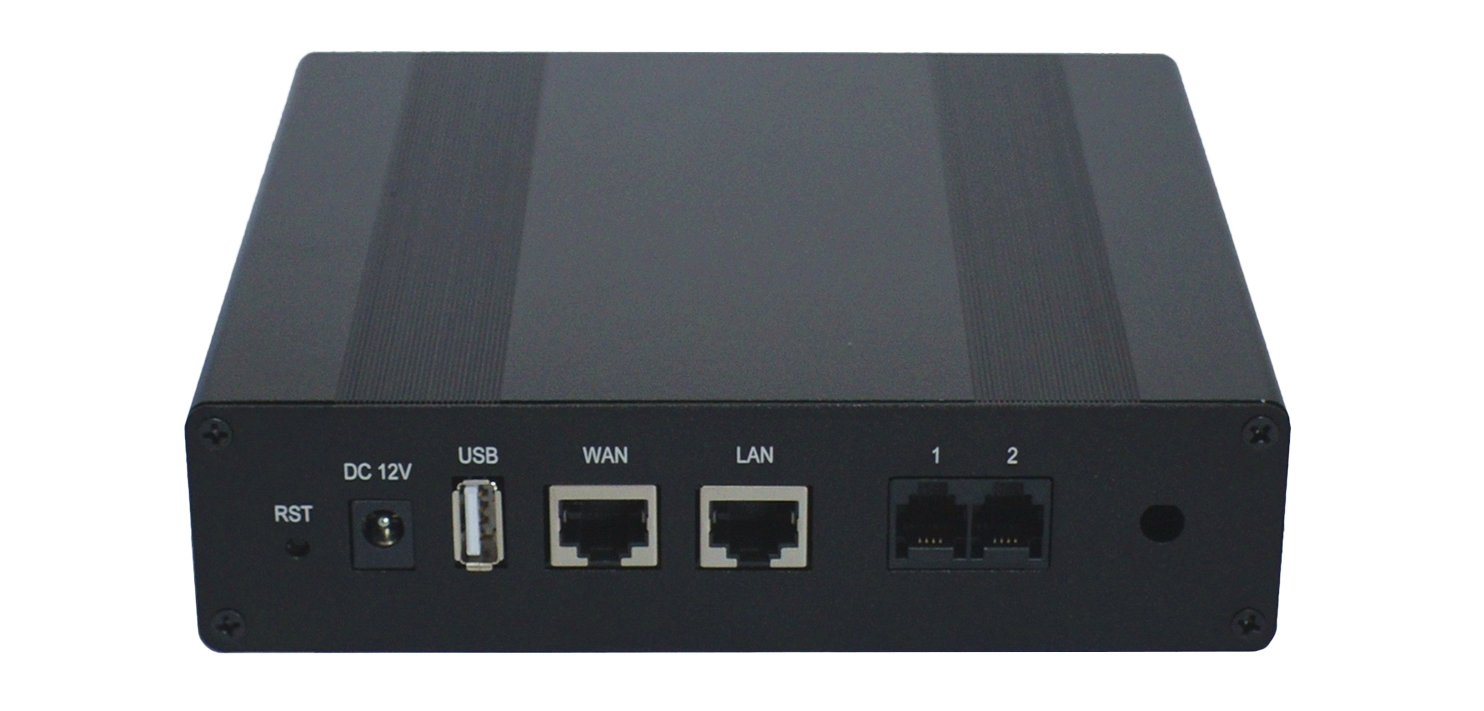

Physical
  • Ethernet Interface: 2 x RJ45 (10/100BASE-TX)
  • USB Interface: 1 USB2.0
  • Power Supply: AC100-240V,50/60Hz DC12V/1.0A
  • Power consumption: 9W
  • Temperature(operation): 0~50 ℃
  • Temperature(storage): -20~80 ℃
  • Operation Humidity: 10%-90% No Condensation
  • Dimension(WxDxH): 159x163x40mm
